Sensor

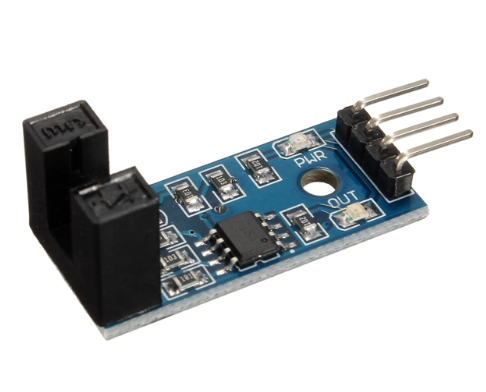

Speed Measuring Sensor Groove Coupler Module For Arduino
- Using imported groove optical coupling sensor, width 5mm
- It has the output state light, if output high level, the lights are off. if output low level, it on
- If it covered, it will output high level; otherwise, its output low level
- Good signal and waveform, with a strong driving ability for more than 15mA
- Equipped with a fixed bolt hole, easy install
Availability:
In stock
₹129.00 ₹161.00
In stock
This is Speed Measuring Sensor Groove Coupler Module For Arduino. The DO output interface can be directly connected to a micro-controller IO port if there is a block detection sensor, such as the speed of the motor encoder can detect.
Technical Specifications
- Working Voltage: 3.3 to 5V
- Groove Width: 10mm
- Comparator: LM393
- Output: Digital Switch Output (0 and 1)
