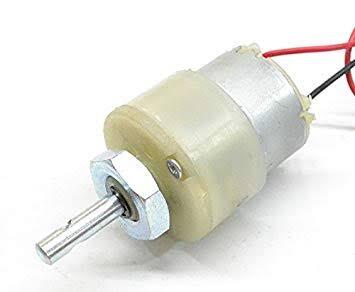

12V DC Gear motor(150 rpm)

12V DC Gear motor(150 rpm)

  • The metal gears have better wear and tear properties
  • Gearbox is sealed and lubricated with lithium grease and requires no maintenance
  • Although motor gives 150 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM and torque
  • The shaft has a hole for better coupling
  • Rated Torque(kg-cm): 2
  • Stall Torque(kg-cm): 7.8
Availability:

In stock

₹195.00 ₹244.00

In stock

Add to Wishlist



These motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the center of their gear box assembly. This DC Motor can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.

SKU: STEM18101 Category: Tag:

Technical Specifications

  • Gear Material: Plastic
  • Rated RPM: 150
  • Operating Voltage(VDC): 12
  • Rated Torque(kg-cm): 2
  • Stall Torque(Kg-Cm): 7.8
  • Load Current(A): 0.3
  • No-Load Current: 60mA
  • Gearbox Diameter (mm): 37
  • Motor Diameter(mm): 32
  • Motor Length(mm): 75
  • Shaft Diameter (mm): 6
  • Shaft Length (mm): 22
  • Weight (gm): 80
