Wireless
Compare
Bluetooth(HC-05)
- Typical 80 dBm sensitivity
- Default baud rate is 9600, Default passkey is 1234, Default name HC-05
- Auto connect to the last device on power as default
- PCB Dimensions: 37.3 mm (L) x 15.5 mm (W)
- Computer and peripheral devices
- Built-in Chip antenna
₹399.00
HC-05 is a Bluetooth module which is designed for wireless communication. It communicates with micro-controller using serial port (USART). Used for GPS navigation system, water and electricity gas meter reading system.
Technical Specifications
- Model: Bluetooth(HC-05)
- Input voltage: 3.6V – 6V, Prohibit more than 7V
- Frequency: 2.4GHz ISM band
- Size: 28 mm x 15 mm x 2.35 mm
- Working temperature: -20 to +75°C
- Colour: Green and Blue
- Header pins: Soldered
- Number of pins: 6
- Pins type: DIP
- Weight: 3.5g
Related products
-
Wireless
IR (transmitter) receiver -TSOP 1738
- Photodetector and preamplifier in one package
- Internal filter for PCM frequency
- Improved shielding against electrical field disturbance
- TTL and CMOS compatibility
- Output active low
- Low power consumption
- High immunity against ambient light
- Continuous data transmission possible (up to 2400 bps)
- Suitable burst length 10 cycles/burst
SKU: STEM18079 -
Wireless

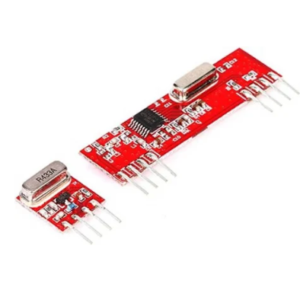

RF Modules Tx & Rx 315 MHz
- The module includes one pair of transmitter and receiver modules and one pair of spring antennas for increasing the communication distance.
- The frequency is 315MHz.
- It is very popular for remote control systems such as Remote control rolling gates, smart car, smart home, etc.
- Compatible with Arduino
- Arduino Library: VirtualWire
- Transmission Distance: 3m (maximum) at VCC = 5V without additional antenna
SKU: STEM18099 -
Wireless
SIM900A GSM GPRS Module with RS232 Interface and SMA Antenna
- Quad-Band GSM/ 850/900/1800/1900MHz
- Compatible with arduino, raspberry pi, arm, avr, pic, 8051
- Power supply 12V/1A to 2 A max.
- Use in the area of full signal strength.
- Perfect suited for GSM based Microcontroller Projects (better than SIM300 and other GSM Modems)
- Option for connecting MIC and SPEAKER directly to GSM MODEM for calls (LINE IN also available)
- Supports communication through RS232 with DB9 Connector, TTL Pins and I2CPins
- CALL SMS GPRS facility – MIC input, LINE input and SPEAKER output pins
SKU: STEM18208 -
Wireless
GPS(GY-NEO6MV2 new GPS Module)
- The cold start time of 38 s and hot start time of 1 s
- 5Hz position update rate
- Fastest cool start: 27 s
- Hot start: 1 s
- Compatible with 3.3 V – 5 V interface
- It also has a EEPROM and a Flash which is useful for you to save your configuration data or save,
SKU: STEM18027
