Color Recognition Sensor(TCS 3200)

Color Recognition Sensor(TCS 3200)

Availability:

In stock
  • Power Down Feature
  • High-Resolution Conversion of Light Intensity to Frequency
  • Programmable Color and Full-Scale Output Frequency
  • 2.54mm pitch connector pin-out
  • Non linearity Error Typically 0.2% at 50 kHz
  • Stable 200 ppm/?C Temperature Coefficient

₹399.00 ₹786.00

In stock

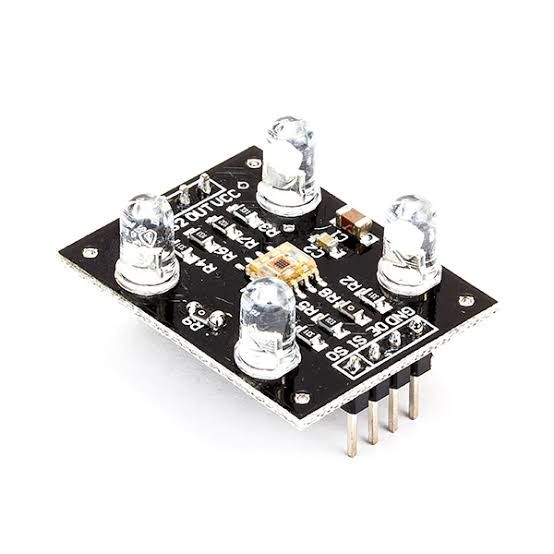

TCS3200 Color Recognition Sensor is a small module designed with TCS3200 Color Sensor that can convert light intensity into frequency. In addition to the TAOS TCS3200 RGB sensor chip, the module also features 4 white LEDs. The TCS3200 can detect and measure a nearly limitless range of visible colors. Applications include test strip reading, sorting by color, ambient light sensing and calibration, and color matching, to name just a few.

SKU: STEM18093 Category: Tag:

Technical Specifications

  • Power: 2.7V to 5.5V
  • Non linearity Error Typically: 0.2% at 50 kHz
  • Stable Temperature Coefficient: 200 ppm/?C
  • Operating Temperature: -40?C to 85?C
  • Ideal Detection distance: 1cm
  • Weight: 4g
  • Size: 28.4 x 28.4mm
